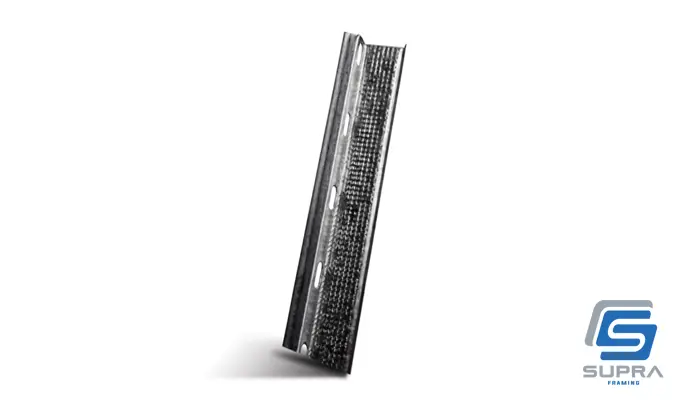

Resilient Channel: Acoustic Steel Framing

This metal channel is designed to be placed as a support for installing panels on wooden or metal frames and its main function is to isolate noise.

Resilient Channel of Supra, a crucial component for soundproofing and enhancing the acoustics of your spaces. Crafted from high-quality galvanized steel, this channel is designed to minimize sound transmission through walls and ceilings.

An exclusive line of essential accessories from the Supra brand by Panel Rey.



Panel Rey’s Resilient Channel is produced from hot-dipped galvanized steel and has a standard G40 galvanized coating. It is manufactured with 1.10 in top flank and 0.50 in flank for mechanical fastening and has a height of 0.45 in.

  • Sound Isolation Master: Our Resilient Channel effectively decouples drywall from the underlying structure, reducing the transfer of airborne and impact noise. This ensures a quieter and more comfortable environment.
  • High-Quality Construction: Made from top-grade galvanized steel, this channel is built to last. Its robust structure provides excellent support while retaining flexibility for optimal soundproofing.
  • Easy Installation: Designed with user-friendliness in mind, installation is straightforward. Its unique design allows for quick and hassle-free mounting, saving both time and effort.
  • Versatile Applications: Whether you're working on residential, commercial, or industrial projects, our Resilient Channel is designed to meet a wide range of soundproofing needs.
  • Corrosion Resistance: Thanks to advanced galvanization, our channel is highly resistant to corrosion. This ensures longevity and durability, even in challenging environments.
  • Code Compliant: Our Resilient Channel meets and exceeds industry standards and building codes, providing you with confidence in the quality and performance of your soundproofing solution.

Elevate the acoustic quality of your spaces with our Resilient Channel. Trust in the quality and innovation that only Supra Framing can provide.



LENGTH 12’
PIECES PER BUNDLE 20
PIECES PER PALLET 1000
TOTAL LINEAL FEET 1200
DESIGN THICKNESS (in) 0.0188
THICKNESS (Mils) 18
MINIMUM THICKNESS (in) 0.0179

All Panel Rey® resilient channels meet or exceed the following ASTM standards: · ASTM C 645 Standard Specification for Nonstructural Steel Framing Members · ASTM A653 Standard Specification for Steel Sheet, Zinc-Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot-Dip · Process · ASTM A924/A924M Standard Specification for General Requirements for Steel Sheet, Metallic-Coated by the Hot-Dip Process. · ASTM A1003/A1003M, Standard Specification for Steel Sheet, Carbon, Metallic- and Nonmetallic-Coated for Cold-Formed Framing Members · ASTM C754 (installation) Standard Specification for Installation of Steel Framing Members to · Receive Screw-Attached Gypsum Panel · Products. · 2012 & 2015 IBC
